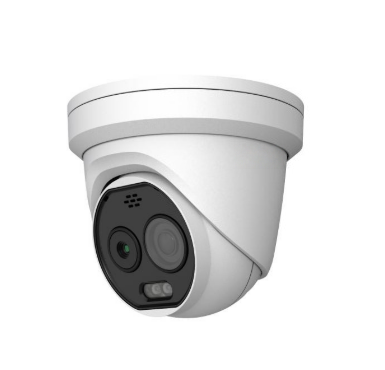

Description
Specification
Thermal Module
Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
Resolution 256 × 192
Pixel Pitch 12 μm
Spectral Range 8 μm to 14 μm
NETD ≤25 mK (25°C, F1.0)
Focal Length 3.6mm
IFOV 3.33mrad
Field of View 50° × 37.3° (H × V)
Min. Focusing Distance 0.3 m
Aperture F1.0
Digital Zoom ×2, ×4
Optical Module
Image Sensor 1/2.7" Progressive Scan CMOS
Resolution 5MP, 2688 × 1944
Min. Illumination 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
Shutter Speed 1 s to 1/100,000 s
Focal Length 4.3 mm
Field of View 84.0° × 43.1° (H × V)
Aperture (Range) F1.6
WDR 120 dB
Image Effect
Bi-spectrum Image Fusion Display the details of optical channel on thermal channel
Picture in Picture Display partial image of thermal channel on the full screen of optical channel
Target Coloration Yes. Supported in white hot and black hot mode.
Illuminator
Light Supplement Hybrid (IR, White light or Smart mode)
IR Distance Up to 30m
Audible and Visual Alarm
White Light Range Up to 30 m
Visual Alarm Yes. White light alarm with adjustable flashing frequencies
Audio alarm
Yes, for two types of audible alarm (VCA and Temperature Exception)
2 preset voice alerts (one for each)
6 importable user-defined voice alerts (6 options shared in the two types)
Smart Function
VCA
4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8
VCA rules in total.
Temperature Measurement 3 temperature measurement rule types (point, area, line), 21 rules in total
Temperature Range -20 °C to 650 °C (-4 °F to 1202 °F)
Temperature Accuracy Max (±2°C, ±2 %)
Fire Detection Dynamic fire detection, up to 10 fire points detectable
Smoking Detection Up to 10 smoking points detected
Smoke Detection Support smoke detection on optical channel
Video and Audio
Main Stream
Thermal:
25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)
Optical:
50 Hz: 25 fps (2688 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720)
60Hz: 30 fps (2688 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-stream
Thermal:
25 fps (704 × 576, 640 × 512, 320 × 240)
Optical:
50 Hz: 25 fps (704 × 576, 352 × 288)
60 Hz: 30 fps (704 × 480, 352 × 240)
Video Compression
Main Stream: H.265/H.264
Sub-Stream: H.265/H.264/MJPEG
Audio Compression G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
Video and Image
Color Palettes
17 types (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2,
Sepia, Color 1, Color 2, Ice fire, Rain, Red hot, Green hot, Dark blue, Winter, Summer)
Network
Protocols
IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RT
CP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP
Network Storage
MicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto
Network Replenishment (ANR)
API
ISAPI, ISUP, HIKVISION SDK, and third-party management platform, Open Network
Video Interface (Profile S, Profile G, Profile T, Profile M),OTAP
Simultaneous Live View Up to 20 channels
User/Host level Up to 32 users, 3 levels: Administrator, Operator, User
Security
User authentication (ID and Password), MAC address binding, HTTPS encryption,
IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
Client iVMS-4200, Hik-Connect
Web Browser
Live view (plug-in allowed) : Internet Explorer 11
Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +
Local service : Chrome 57.0+, Firefox 52.0 +
Interface
Alarm Input 2, alarm input (0-5 VDC)
Alarm Output 2, alarm output (alarm response actions configurable)
Alarm Action SD recording/Relay output/Smart capture/FTP upload/Email linkage
Audio Input
1, 3.5 mm Mic in/Line in interface
Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio Output Linear level, impedance: 600 Ω
Communication Interface
1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
1, RS-485 interface (half duplex)
General
Web Client Language
32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German,
Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish,
Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean,
Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese
(Brazil)
Power Supply
12 VDC ± 25%, 24 VDC ± 25% two-core terminal block
PoE (802.3at, class 4)
Power Consumption
12 VDC ± 25%: 0.85A to 1.42 A, max. 12.8W
PoE (802.3at, class 4): 42.5 V to 57 V, 0.22 A to 0.3 A, max. 12.8W
Working
Temperature/Humidity
Temperature: -40°C to 65°C (-40°F to 149°F)
Humidity: 95% or less
Protection Level
IP67 Standard, IK10
TVS 6000V lightning protection, surge protection, voltage transient protection
Dimensions 349.1 mm × 113 mm × 105mm
Weight 1710 g
Detection Range Table
VCA Range for Humans 36 m
VCA Range for Vehicles 90 m
Approval
EMC
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019,
EN50130-4: 2011+A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 7)
KC (KSC9832: 2019; KSC9835: 2019)
Safety
CB: IEC 62368-1: 2014+A11;
CE-LVD: EN 62368-1: 2014/A11: 2017;
BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005
LOA: SANS/IEC 60950-1
Environment
CE-RoHS：2011/65/EU,
WEEE: 2012/19/EU,
Reach：Regulation(EC) No 1907/2006
Protection
IP67: IEC 60529-2013
IK10: IEC 62262-2002
Range Table
*The table is only for reference and the performance may vary according to different environment.
VCA Range
(Humans: 1.8
× 0.5 m)
VCA Range
(Vehicles: 1.4
× 4.0 m)
Temperature
Measurement
(Object: 1 ×
1 m)
Temperature
Measurement
(Object: 0.2 ×
0.2 m)
Fire Detection
(Object Size:
0.5 x 0.5m))
Smoking
Detection
Smoke
Detection
(Object Size:
0.5 x 0.5m))
36m 90 m 58.3m 11.7m 25.8m 5.4m 12.9m
DORI
*The table is only for reference and the performance may vary according to different environment.
*The optimal human detection, recognition, and identification distances are calculated according to Johnson's Criteria.
Detection Range: In order to distinguish an object from the background, the object must be covered by 1.5 or more
pixels.
Recognition Range: In order to classify the object (animal, human, vehicle, etc.), the object must be covered by 6 or
more pixels.
Identification Range: In order to identify the object and describe it in details, the object must be covered by 12 or
more pixels.
Detection Range
(Humans: 1.8 ×
0.5 m)
Detection Range
(Vehicles: 1.4 ×
4.0 m)
Recognition
Range (Humans:
1.8 × 0.5 m)
Recognition
Range (Vehicles:
1.4 × 4.0 m)
Identification
Range (Humans:
1.8 × 0.5 m)
Identification
Range (Vehicles:
1.4 × 4.0 m)
150m 460m 38m 112m 19m 56m
Typical Application
No products could be used under HYDROGEN FLUORIDE environment. This model has No Specific PROTECTION.
Level Description
Top-level Protection
HIKMICRO products at this level are equipped for use in
areas where professional anti-corrosion protection is a
must. Usually it is used in salt-spray and sulfur dioxide
(with a concentration volume ratio of less than 0.67%)
environment, such as chemical plants and coastal lines.
Moderate Protection
DBMICRO products at this level are equipped for use in
areas with moderate anti-corrosion demands. Typical
application scenarios include coastal areas about 2
kilometers (1.24 miles) away from coastlines, as well as
areas affected by acid rain.
No Specific Protection
HIKMICRO products at this level are equipped for use in
areas where no specific anti-corrosion protection is
needed.
