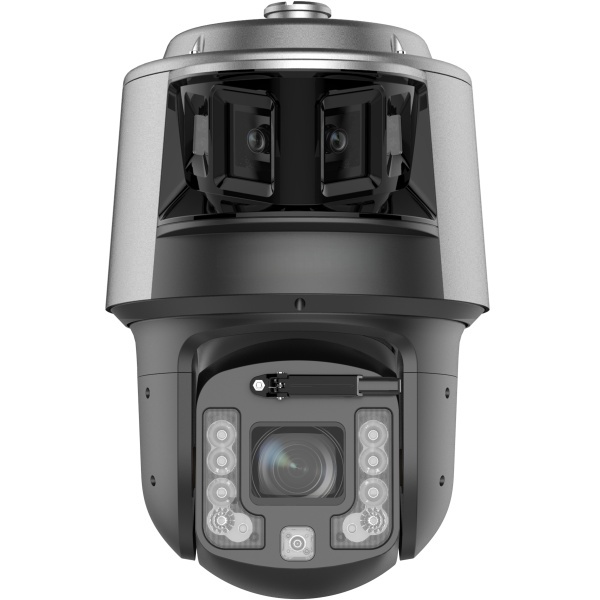

TandemVu Panoramic 8 MP 42X Network Speed Dome

Specification

Camera

Image Sensor

[Bullet channel] 1/2.5" Progressive Scan CMOS, [PTZ channel] 1/1.8" Progressive Scan CMOS

Min. Illumination

[Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with light,
[PTZ channel] Color: 0.0003 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 lux with IR

Shutter Speed

1/25 s to 1/30000 s

Slow Shutter

Yes

Day & Night

[Bullet channel] Color, [PTZ channel] IR cut filter

Zoom

[PTZ channel] 42 × optical, 16 × digital

Max. Resolution

[Bullet channel] 3680 × 1656, [PTZ channel] 3840 × 2160

Lens

Focus

Auto,semi-auto,manual

Zoom Speed

[Bullet channel] No, [PTZ channel] approx. 5.5 s

Focal Length

[Bullet channel] 2.8 mm, [PTZ channel] 6 to 252 mm

FOV

[Bullet channel] horizontal field of view: 190° ± 10°°, vertical field of view: 80° ± 5°, diagonal field of view: 198° ± 5°°, [PTZ channel] horizontal field of view: 59.1°° to 2°°, vertical field of view: 34.2°° to 1.1°°, diagonal field of view:  67.1° to  2.3° °

Aperture

[Bullet channel] F1.0, [PTZ channel] F1.2

Illuminator

Supplement Light Type

[Bullet channel] White Light and IR, [PTZ channel] IR

Supplement Light Range

[Bullet channel] White Light: up to 40 m, IR: up to 60 m
[PTZ channel] IR: up to 400 m

Smart Supplement Light

Yes

PTZ

Movement Range (Pan)

 [PTZ channel] 0° to 360°

Movement Range (Tilt)

[Bullet channel] 12° to 24°, [PTZ channel] -20° to 90°

Pan Speed

[PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s

Tilt Speed

[Bullet channel] tilt speed configurable,[PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s

Proportional Pan

[Bullet channel] No, [PTZ channel] Yes

Presets

300

Patrol Scan

8 patrols, up to 32 presets for each patrol

Pattern Scan

4 pattern scans, record time over 10 minutes for each scan

Power-off Memory

Yes

Park Action

Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan

3D Positioning

Yes

PTZ Status Display

Yes

Preset Freezing

Yes

Scheduled Task

Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output

Video

Main Stream

  [Bullet channel] 50 Hz: 25 fps (3680 × 1656，3632 × 1632), 60 Hz: 30 fps (3680 × 1656，3632 × 1632) [PTZ channel] 50 Hz: 50 fps (3840 × 2160, 2688 × 1520), 100 fps (1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 60 fps (3840 × 2160, 2688 × 1520), 120 fps (1920 × 1080, 1280 × 960, 1280 × 720) *High frame rate is supported under monitoring mode only.

Sub-Stream

[Bullet channel] 50 Hz: 25 fps (1200 × 536、960x432), 60 Hz: 30 fps (1200 × 536、960x432) , [PTZ channel] 50 Hz: 25 fps (704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (704 × 480,640 × 480,352 × 240),

Third Stream

[Bullet channel] No,[PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline profile,Main profile,High profile

H.265 Type

Main profile

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

8 fixed regions for each stream

Audio

Audio Compression

G.711,MP2L2,AAC-LC,MP3,G.726,G.722.1,PCM

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3),16 Kbps (G.726),16 Kbps (G.722.1)

Audio Sampling Rate

8 kHz,16 kHz,32 kHz,48 kHz

Environment Noise Filtering

Yes

Network

API

 ISAPI,SDK,ISUP,ISUP, ISAPI, Dobeiview SDK, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M)，OTAP

Security

Password protection,complicated password,watermark,control timeout settings,HTTPS encryption,IP address filter,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,security audit log,host authentication (MAC address),TLS 1.3,TLS 1.2

Network Storage

NAS (NFS, SMB/CIFS),auto network replenishment (ANR)

Protocols

IPv4/IPv6,HTTP,HTTPS,802.1X,QoS,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,FTP

Simultaneous Live View

Up to 20 channels

User/Host

Up to 32 users. 3 user levels: administrator, operator, and user

Client

iVMS-4200,DBCentral Pro,DB-Connect

Web Browser

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+；
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

AI Open Platform

Model Specification

Model type for AI Open Platform trained algorithm loading: high-performance model (small model), enhanced high-performance model (hybrid small-large model), and ultra-high-precision model (large model).↵ Supports 4 model packages, each capable of detecting 16 target types and classifying 1 target. The device runs up to 2 small models or 1 large model at the same time.

Task Type

Algorithm type for AI Open Platform high-performance model (small model): Detection, Classification, Mixed (maximum: 1 detection + 7 classifications), OCR, Segmentation, Image Comparison. Supports simultaneous independent operation of 2 models. Supports video analysis and image analysis.
Algorithm type for AI Open Platform enhanced high-performance model (hybrid small-large model): Detection, Classification, Mixed (maximum: 1 detection + 7 classifications). Supports video real-time analysis.
Algorithm type for AI Open Platform ultra-high-precision model (large model): Detection, Classification, Mixed (maximum: 1 detection + 7 classifications), OCR. Supports image scheduled analysis and I/O-triggered analysis.
Supports algorithm orchestration for comparison. Supports importing user-defined orchestration packages (3 operator nodes, 5 logic nodes) for scenario-based application deployment.

Event Type

Region target exception status detection, region target number counting, area overlap ratio counting, area overlap ratio exception detection, area status change detection, line crossing target detection, line crossing target counting, OCR trigger, full analysis rule, combined rule

Rule Setting

Up to 16 rules. Supports moving target filtering and shield region setting.


Day/Night Switch

Day,night,auto,schedule

Image Enhancement

3D DNR,HLC,BLC,EIS

Wide Dynamic Range (WDR)

[Bullet channel] 120 dB, [PTZ channel] 140 dB

Defog

Digital defog

Image Stabilization

EIS (Built-in gyroscope to improve EIS performance)

Regional Exposure

Yes

Regional Focus

[Bullet channel] No, [PTZ channel] Yes

Image Settings

Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser

Image Parameters Switch

Yes

Privacy Mask

[Bullet channel] No, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable

SNR

≥ 52 dB

Supplement Detection

Satellite Positioning

No

Gyroscope

Yes

Compass

No

Interface

On-board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1TB .

Ethernet Interface

1 RJ45 100M self-adaptive Ethernet port

Alarm

7 input(s), 2 output(s)

Audio

1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%,
1 output (line out), line level, output impedance: 600 Ω

RS-485

1 RS-485 (Half duplex, DOBEIVIEW, Pelco-P, Pelco-D, self-adaptive)

Reset

Yes

Large Models

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
Support combined event alarm triggering
Dedicated large scale AI model for perimeter protection, reduce false alarms by 90% compared to conventional AI cameras
VCA range: [Bullet channel] up to 40m(nighttime)/60m(daytime), [PTZ channel] Wide: up to 70m(nighttime)/100m(daytime), Tele: up to 400m
*Result based on standard setup and test environment

Scenario-Aware Object Detection

This function is based on the large model technology combined with image classification detection. It can automatically detect and identify scene categories in the detection area, including road, intersection, toll station, petrol station, open-air square, vehicle entrance and exit, and person entrance and exit, etc. The PTZ camera will rotate 360° to capture and label the scenes.For automatically recognize the scene information of captured image.- Real-time detection mode: the PTZ camera completes the full-scene capture, detection, and recognition output within 10 minutes in 360°.- Scheduled detection mode: the scheduled time can be set, and pictures can be collected every day or week. The collected pictures will be stored in eMMC, and the detection results will be output at 2 AM by default.The detection results and labels can be uploaded as alarms, and the alarm should include the camera IP address, port No., channel No., capture time, upload time, picture, PTZ coordinates, label ID, label name, and OCR information, as well as the coordinates of each OCR.

Event

Basic Event

[PTZ channel & bullet channel] alarm input and output, exception,[PTZ channel] video tampering alarm

Smart Event

unattended baggage detection,object removal detection,people gathering detection,loitering detection,fast moving detection,parking detection

Linkage

 [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan), [Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording

Deep Learning Function

Multi-Target-Type Detection

[PTZ channel] Supports simultaneous detection and capture of human body, face and vehicle

Face Capture

Detects up to 30 faces simultaneously,
Uploads face with background and closed-up face pictures

Face Comparison

Up to 10 face libraries. 30000 faces for each library. 150000 faces in total

Road Traffic and Vehicle Detection

Smart Function:
Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario)
Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.
Support vehicle and non-vehicle counting
Blocklist and allowlist: up to 10,000 records
LPR Countries/Regions:
4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions
Accuracy (Under recommended installation and lighting conditions):
License plate recognition rate ≥98%
Capture rate ≥99%
Driving direction accuracy rate ≥98%
Vehicle Capture Speed:
Front installation in checkpoint scenario: up to 120 km/h
Side installation: up to 80 km/h
Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode

People Density

Supports detecting the level of people density in the configured area,[PTZ channel]: no, [Panoramic channel]: yes

Linkage and Tracking

Smart Tracking

Manual tracking, auto-tracking 3.0

Smart Linkage

Manual tracking, auto tracking, tracking takeover, linked tracking capture

Object Tracking

Support person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support vehicle arming. When the device detects the armed vehicles in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.

General

Power

36 VDC± 25%, max. 90 W (Max. 65 W, including max. 15 W for IR and max. 8 W for heater),
PoE 802.3bt, type4, class8, max. 90W (Max. 65W, including max. 15W for IR and max. 8 W for heater)

General Function

mirror,password protection

Operating Condition

-40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing)

Wiper

Yes

Demist

Yes

Material

ADC12

Dimension

Ø260 mm × 382.9 mm (Ø10.24" × 15.07")

Weight

Approx. 7.8 kg (17.196 lb.)

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval

EMC

CE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021)

Safety

 CE-LVD (EN 62368-1:2014 + A11:2017),CB (IEC 62368-1:2014)

Environment

CE-RoHS (2011/65/EU and its amendment (EU)2015/863)

Protection

IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013),IK10 (IEC 62262:2002)

DORI

Detect

Observe

Recognize

Identify

Definition

25 px/m

63 px/m

125 px/m

250 px/m

[Bullet channel] Distance

38.6m

15.3m

7.7m

3.9m

[PTZ channel] Distance (Tele)

3475.9m

          1379.3m

          695.2m

          347.6m
