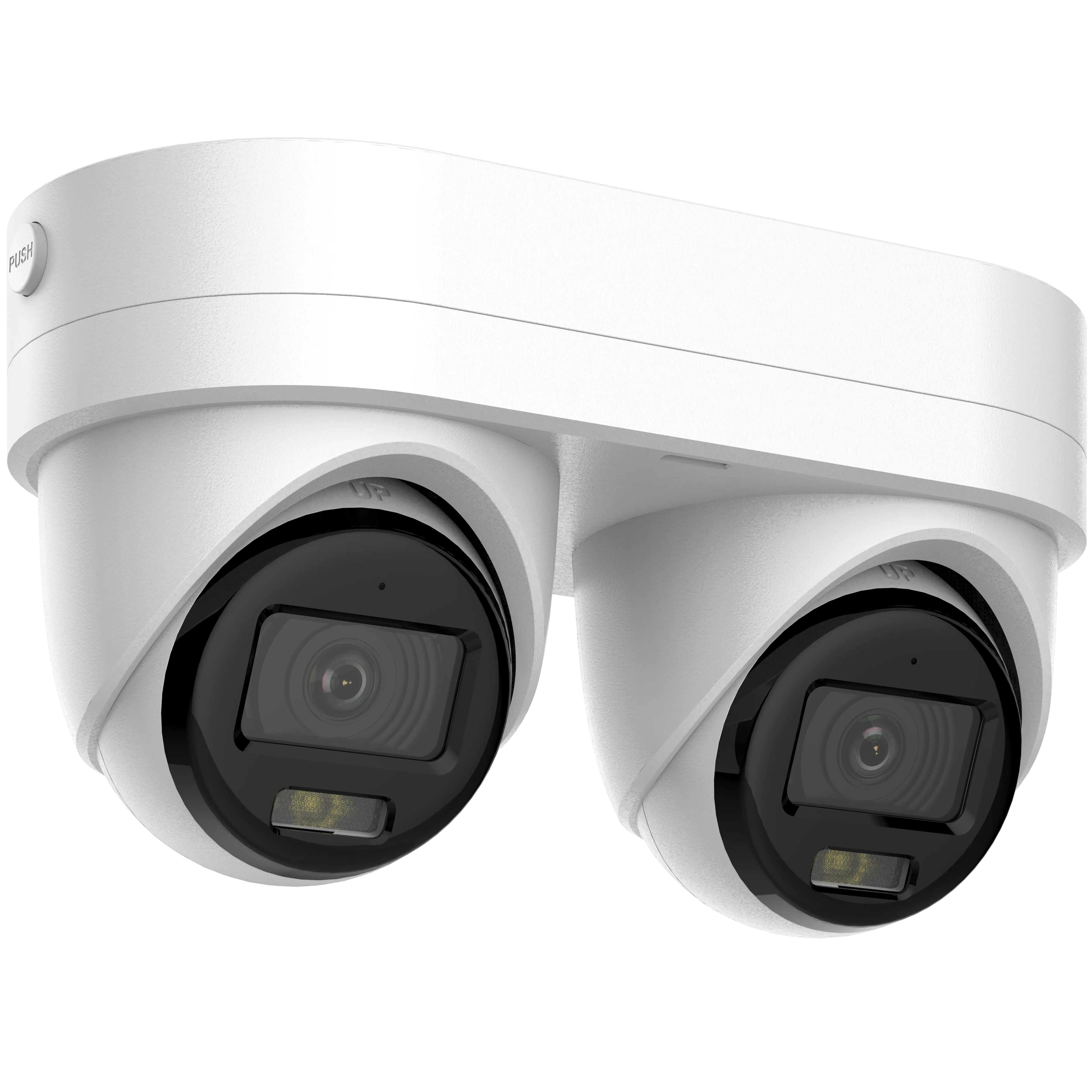

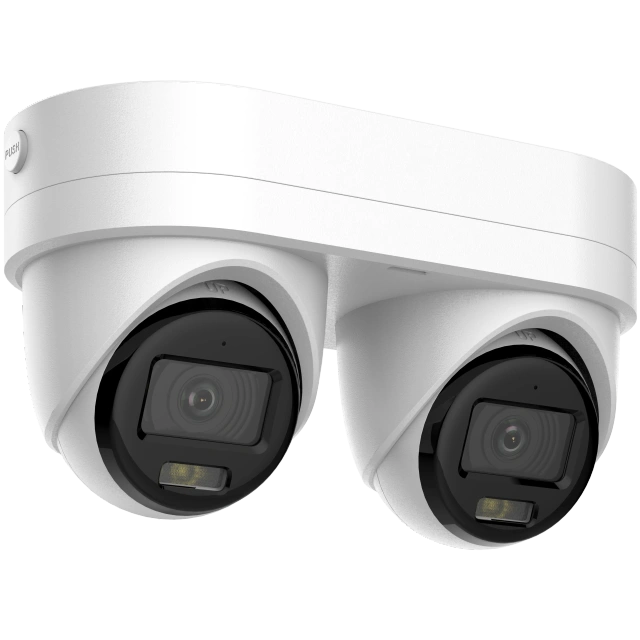

| MODEL | NC324G2D-XDLU/RB |
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Min. Illumination | Color: 0.001 Lux @ (F1.6, AGC On), 0 Lux with IR |
| Shutter Speed | 1/3 sec - 1/100,000 sec |

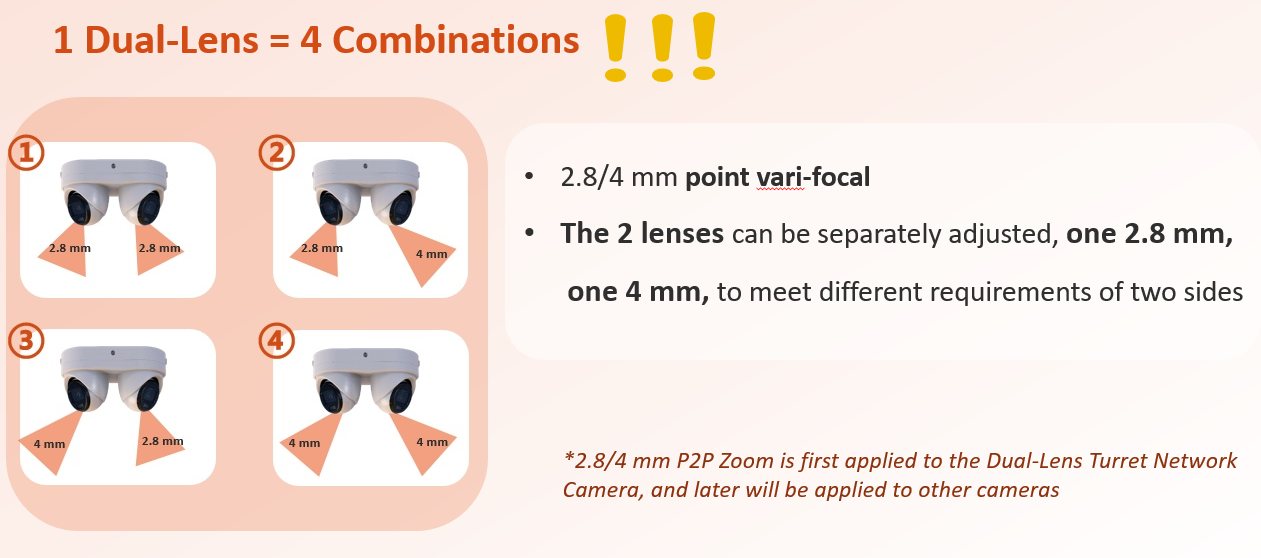

| Lens | 2.8 - 4mm Motorized x 2 |
| Field of View |
2.8mm: Horizontal FOV: 99.3°, Vertical FOV: 52.9°, Diagonal FOV: 120.2° 4mm: Horizontal FOV: 80°, Vertical FOV: 44.1°, Diagonal FOV: 94° |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| Day & Night | IR Cut Filter |
| Wide Dynamic Range | 120dB |
| Compression Standard | |
| Video Compresson | H.265+/H.264+ |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Video Bit Rate | 32 Kbps - 16 Mbps |
| Bit Rate Control | CBR/VBR |
| Region of Interest (ROI) | 1 fixed region |
| Image | |
| Max Resolution | 4MP x 2 |
| Frame Rate | 30FPS (2688x1520, 1920x1080) |
| Day/Night Switch | Day, night, auto, schedule, triggered by alarm |
| Image Enhancements | BLC, HLC, EIS, 3D DNR |
| Image Settings | Saturation, birghtness, contrast, sharpness |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile G), ISAPI, SDK |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP |
| User/Host | Up to 32 users, 3 user levels: administrator, operator, user |
| Security | Password protection, complicated password, https encryption, IP address filter |
| Interface | |
| Audio | Arrayed dual microphone |
| Speaker | 1 built in speaker |
| Communication | 1 RJ45 10/100M self adaptive |
| On-Board Storage | Built-in Micro SD/SDHC/SDXC Slot, Up To 512GB |
| General | |
| Protection | IP67 |
| Operating Conditions | -22°F - 140°F, Humidity 95% or less (non-condensing) |
| Power Supply | 12VDC, PoE (802.3af) |
| Power Consumption | 17W |
| Dimensions | 7.9" x 4.7" x 3.8" |
| Weight | Approx 2 LBS |
