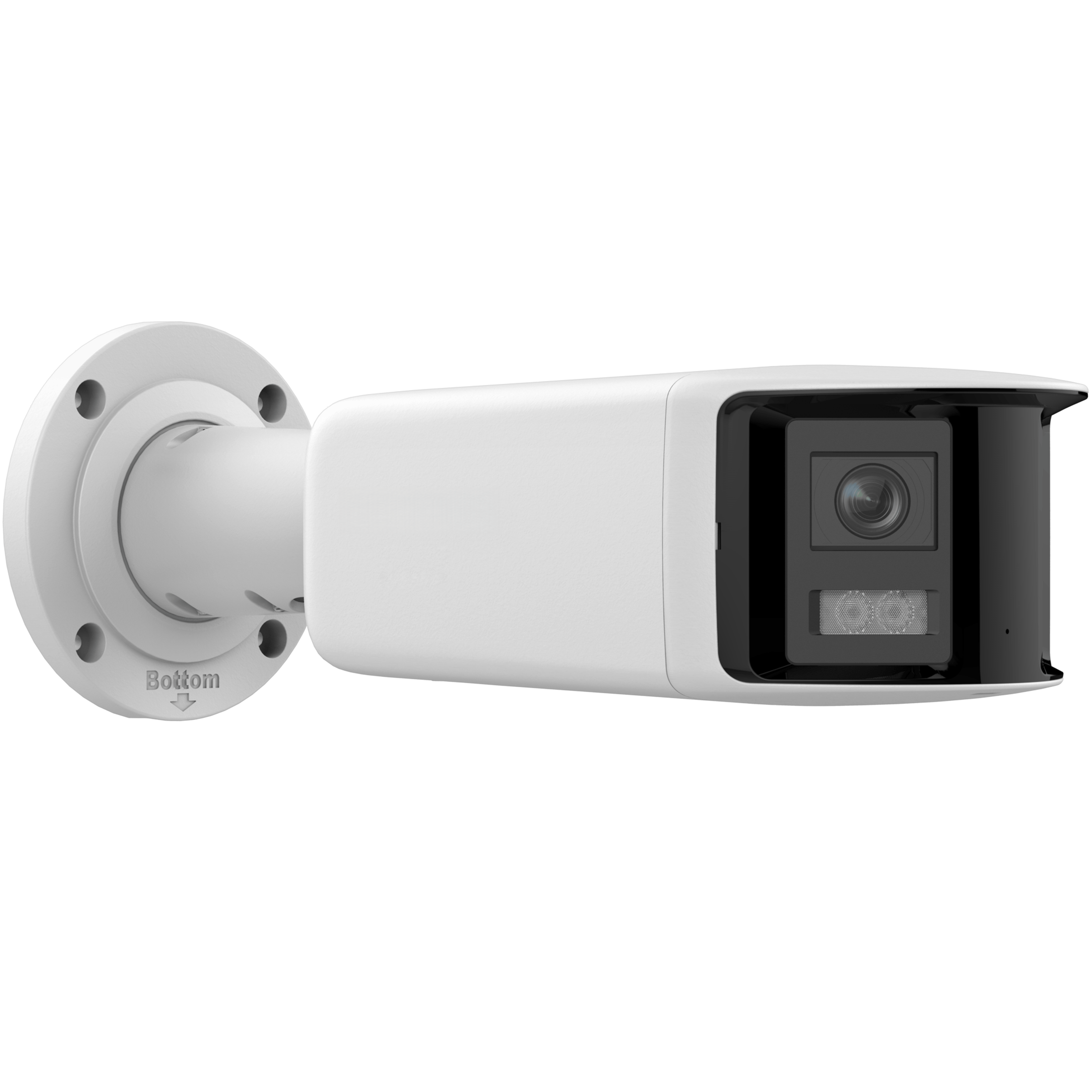

180° panoramic view
24/7 colorful imaging via ColorVu 3.0 technology
DBAI-ISP for excellent noise reduction effect
White light & IR light & Smart Hybrid Light modes
Person and vehicle classification based on deep learning
Active strobe light and audio alarm to warn trespassers off
Crystal-clear audio with Arrayed Dual-Mic (-2U)
Clear imaging against strong backlight due to 130 dB WDR technology
Anti-corrosion design (NEMA 4X), more reliable
Dust and water resistant (IP67)
Audio and alarm interface available
Eco-friendly and tamper-free packaging
|
Specification |
|
|
Camera |
|
|
Image Sensor |
1/2.5" Progressive Scan CMOS |
|
Max. Resolution |
4256 × 1888 |
|
Min. Illumination |
Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light |
|
Shutter Time |
1 s to 1/100,000 s |
|
Day & Night |
IR cut filter |
|
Angle Adjustment |
Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360° |
|
Lens |
|
|
Lens Type |
Fixed focal lens, 2.8 mm |
|
Focal Length & FOV |
2.8 mm, horizontal FOV 182.6°, vertical FOV 74.6° |
|
Lens Mount |
M12 |
|
Iris Type |
Fixed |
|
Aperture |
F1.0 |
|
Depth of Field |
2.8 mm: 1.6 m to ∞ |
|
DORI |
|
|
DORI |
2.8 mm: D: 62 m, O: 24 m, R: 12 m, I: 6 m |
|
Illuminator |
|
|
Supplement Light Type |
White Light, IR |
|
Supplement Light Range |
Up to 40 m |
|
Smart Supplement Light |
Yes |
|
IR Wavelength |
850 nm |
|
Video |
|
|
Main Stream |
50Hz: 20 fps (4256 × 1888, 4096 × 1856) |
|
Sub-Stream |
50Hz: 20 fps (1200 × 536, 960 × 432) |
|
Video Compression |
Main stream: H.265/H.264/H.264+/H.265+, |
|
Video Bit Rate |
32 Kbps to 24 Mbps |
|
H.264 Type |
Baseline Profile, Main Profile, High Profile |
|
H.265 Type |
Main Profile |
|
Bit Rate Control |
CBR,VBR |
|
Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
|
Region of Interest (ROI) |
1 fixed regions for each stream |
|
Audio |
|
|
Audio Type |
-U: Mono sound |
|
Audio Compression |
-U:G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
|
Audio Bit Rate |
-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
|
Audio Sampling Rate |
-U: 8 kHz/16 kHz/32 kHz/48 kHz |
|
Environment Noise Filtering |
-U: Yes |
|
Network |
|
|
Protocols |
SNMP,SSL/TLS,IPv6,IGMP,DNS,SFTP,WebSockets,QoS,DDNS,SMTP,PPPoE,DHCP,WebSocket,FTP,NTP,HTTP,RTSP,IPv4,HTTPS,UPnP,RTP,TCP/IP,ICMP,802.1X,RTCP,UDP |
|
Simultaneous Live View |
Up to 6 channels |
|
API |
ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
|
User/Host |
Up to 32 users |
|
Security |
IP address filter, basic and digest authentication for HTTP/HTTPS, TLS 1.3, host authentication (MAC address), watermark, RTP/RTSP over HTTPS, complicated password, AES128/256, Password protection, WSSE and digest authentication for Open Network Video Interface, TLS 1.2, 802.1X authentication(EAP-LEAP,EAP-TLS,EAP-MD5,EAP-PEAP), control timeout settings, HTTPS encryption, security audit log |
|
Network Storage |
NAS (NFS, SMB/CIFS) |
|
Client |
iVMS-4200,DB-Connect,DB-Central |
|
Web Browser |
Plug-in free live view: Chrome 91+, Firefox 88+, Edge 91+, Safari 13+ |
|
Image |
|
|
Image Parameters Switch |
Yes |
|
Image Settings |
Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
|
Day/Night Switch |
Day, Night, Auto, Schedule |
|
Image Enhancement |
BLC, HLC, 3D DNR, Distortion Correction, Defog |
|
SNR |
≥ 52 dB |
|
Wide Dynamic Range (WDR) |
130 dB |
|
Image Stabilization |
No |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
Interface |
|
|
Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
On-Board Storage |
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
|
Built-in Speaker |
Max. power consumption: 2 W, max. sound pressure level: 10 cm: 110 dB. |
|
Audio |
Built-in Microphone: -2U: Arrayed dual-microphone, 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
|
Alarm |
1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
|
Reset Key |
Yes |
|
Event |
|
|
Basic Event |
Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception, alarm input and output |
|
Smart Event |
Scene change detection |
|
Linkage |
Notify surveillance center, trigger alarm output, trigger recording, trigger capture, audible warning, send email |
|
Deep Learning Function |
|
|
Face Capture |
No |
|
Perimeter Protection |
Line crossing, intrusion, region entrance, region exiting |
|
General |
|
|
Power |
12 VDC ± 25%, 1.67 A, max. 20 W,Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 24 W |
|
Material |
Cover: metal, main body: metal |
|
Dimension |
118.6 mm × 78 mm × 306.5 mm (4.67" × 3.07" × 12.07") |
|
Package Dimension |
405 mm × 190 mm × 180 mm (15.94" × 7.48" × 7.09") |
|
Weight |
Approx. 1440 g (3.17 lb.) |
|
With Package Weight |
Approx. 2100 g (4.63 lb.) |
|
Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|
Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|
General Function |
Heartbeat, flash log, password reset via email, pixel counter, anti-banding |
|
Language |
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
|
Flashing Light |
/SRB model: Red and Blue Light |
|
Approval |
|
|
EMC |
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 |
|
Safety |
CB: IEC 62368-1: 2014+A11, |
|
Environment |
CE-RoHS: 2011/65/EU, |
|
Protection |
IP67: IEC 60529-2013 |
|
Anti-Corrosion Protection |
NEMA 4X (NEMA 250-2018) |
Dobeiview products are classified into three levels according to their anti-corrosion performance. Refer to the following description to choose for your using environment.
This model has MODERATE PROTECTION.
|
Level |
Description |
|
Top-level protection |
Dobeiview products at this level are equipped for use in areas where professional anti-corrosion protection is a must. Typical application scenarios include coastlines, docks, chemical plants, and more. |
|
Moderate protection |
Dobeiview products at this level are equipped for use in areas with moderate anti-corrosion demands. Typical application scenarios include coastal areas about 2 kilometers (1.24 miles) away from coastlines, as well as areas affected by acid rain. |
|
No specific protection |
Dobeiview products at this level are equipped for use in areas where no specific anti-corrosion protection is needed. |
