Supports Embedded Open Platform (HEOP) and importing third party applications
Supports 1.5 TOPS computing power, 60 MB system memory, 400 MB smart RAM, and 2 GB eMMC storage for sharing resources
Efficient H.265+ compression technology

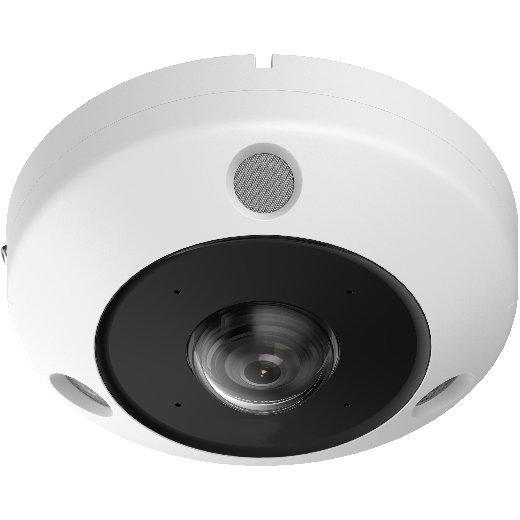

180° fisheye view
High quality imaging with 5 MP resolution
Up to 4 live view display modes
Clear imaging against strong back light due to 120 dB true WDR technology
|
Specification |
|
|
Camera |
|
|
Image Sensor |
1/2.7" Progressive Scan CMOS |
|
Max. Resolution |
2560 × 1920 |
|
Min. Illumination |
Color: 0.017 Lux @ (F2.25, AGC ON),B/W: 0 Lux with IR |
|
Shutter Time |
1/3 s to 1/100,000 s |
|
Day & Night |
IR cut filter |
|
Lens |
|
|
Lens Type |
Fixed focal lens, 1.05 mm |
|
Focal Length & FOV |
1.05 mm, horizional FOV: 180°, vertical FOV: 180°, diagonal FOV: 180° |
|
Lens Mount |
M12 |
|
Iris Type |
Fixed |
|
Aperture |
F2.25 |
|
Depth of Field |
0.1 m to ∞ |
|
DORI |
|
|
DORI |
D: 21 m, O: 8 m, R: 4 m, I: 2 m |
|
Illuminator |
|
|
Supplement Light Type |
IR |
|
Supplement Light Range |
Up to 8 m |
|
Smart Supplement Light |
Yes |
|
IR Wavelength |
850 nm |
|
HEOP |
|
|
Open Resources |
Memory: 60 MB, |
|
Computing Power |
1.5 TOPS |
|
Open Capability |
HEOP 1.0 OpendevSDK |
|
Deep Learning Structure |
Caffe,PyTorch,TensorFlow |
|
Programming Language |
C,C++ |
|
Video |
|
|
Main Stream |
50 Hz: 25 fps/60 Hz: 30 fps: |
|
Sub-Stream |
50 Hz: 25 fps/60 Hz: 30 fps: |
|
Video Compression |
Main stream: H.265/H.264/H.264+/H.265+ |
|
Video Bit Rate |
32 Kbps to 16 Mbps |
|
H.264 Type |
Baseline Profile/Main Profile/High Profile |
|
H.265 Type |
Main Profile |
|
Bit Rate Control |
CBR/VBR |
|
Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
|
Region of Interest (ROI) |
5 fixed regions for main stream and sub-stream |
|
Target Cropping |
Yes |
|
Fisheye Display |
|
|
Mount Type |
Ceiling mounting |
|
Decoding Mode |
Support hardware decoding and software decoding |
|
Audio |
|
|
Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
|
Audio Bit Rate |
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
|
Audio Sampling Rate |
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
|
Environment Noise Filtering |
Yes |
|
Network |
|
|
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP |
|
Simultaneous Live View |
Up to 20 channels |
|
API |
Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
|
User/Host |
Up to 32 users. 3 user levels: administrator, operator and user |
|
Security |
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for Open Network Video Interface, memory card encryption, SFTP encryption, SRTP encryption |
|
Network Storage |
NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
|
Client |
Guarding Vision |
|
Web Browser |
Plug-in required live view: IE 10, IE 11 |
|
Image |
|
|
Image Parameters Switch |
Yes |
|
Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
|
Day/Night Switch |
Day, Night, Auto, Schedule |
|
Wide Dynamic Range (WDR) |
120 dB |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
SNR |
≥ 52 dB |
|
Interface |
|
|
Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
On-Board Storage |
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
|
Built-in Microphone |
Yes |
|
Audio |
1 input(s) (line in), four-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, |
|
Alarm |
1 input, 1 output (max. 12 VDC, 30 mA) |
|
RS-485 |
1 RS-485 (Half duplex, DOBEIVIEW, Pelco-P, Pelco-D, self-adaptive) |
|
Reset Key |
Yes |
|
Event |
|
|
Basic Event |
Motion detection,video tampering alarm,exception |
|
Linkage |
Upload to NAS/memory card/FTP, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning |
|
Deep Learning Function |
|
|
People Counting |
Supports counting, displaying and exporting the people flow data of entering, exiting and passing by (The data is stored in the flash.), |
|
Queue Management |
Supports up to 4 detection regions, and independent arming schedule and linkage method |
|
Heat Map |
Yes |
|
General |
|
|
Power |
12 VDC ± 25%, 0.50 A, max. 6 W,Ø5.5 mm coaxial power plug, |
|
Dimension |
Ø119.9 mm × 41.2 mm (Ø4.7" × 1.6") |
|
Package Dimension |
150 mm × 125 mm × 99 mm (5.9" × 4.9" × 3.9") |
|
Weight |
Approx. 320 g (0.7 lb.) |
|
With Package Weight |
Approx. 510 g (1.1 lb.) |
|
General Function |
Anti-banding, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter |
|
Storage Conditions |
-10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing) |
|
Startup and Operating Conditions |
-10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing) |
|
Language |
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
Products are classified into three levels according to their anti-corrosion performance. Refer to the following description to choose for your using environment.
This model has NO SPECIFIC PROTECTION.
|
Level |
Description |
|
Top-level protection |
Products at this level are equipped for use in areas where professional anti-corrosion protection is a must. Typical application scenarios include coastlines, docks, chemical plants, and more. |
|
Moderate protection |
Products at this level are equipped for use in areas with moderate anti-corrosion demands. Typical application scenarios include coastal areas about 2 kilometers (1.24 miles) away from coastlines, as well as areas affected by acid rain. |
|
No specific protection |
Products at this level are equipped for use in areas where no specific anti-corrosion protection is needed. |
