AI-ISP for excellent noise reduction effect

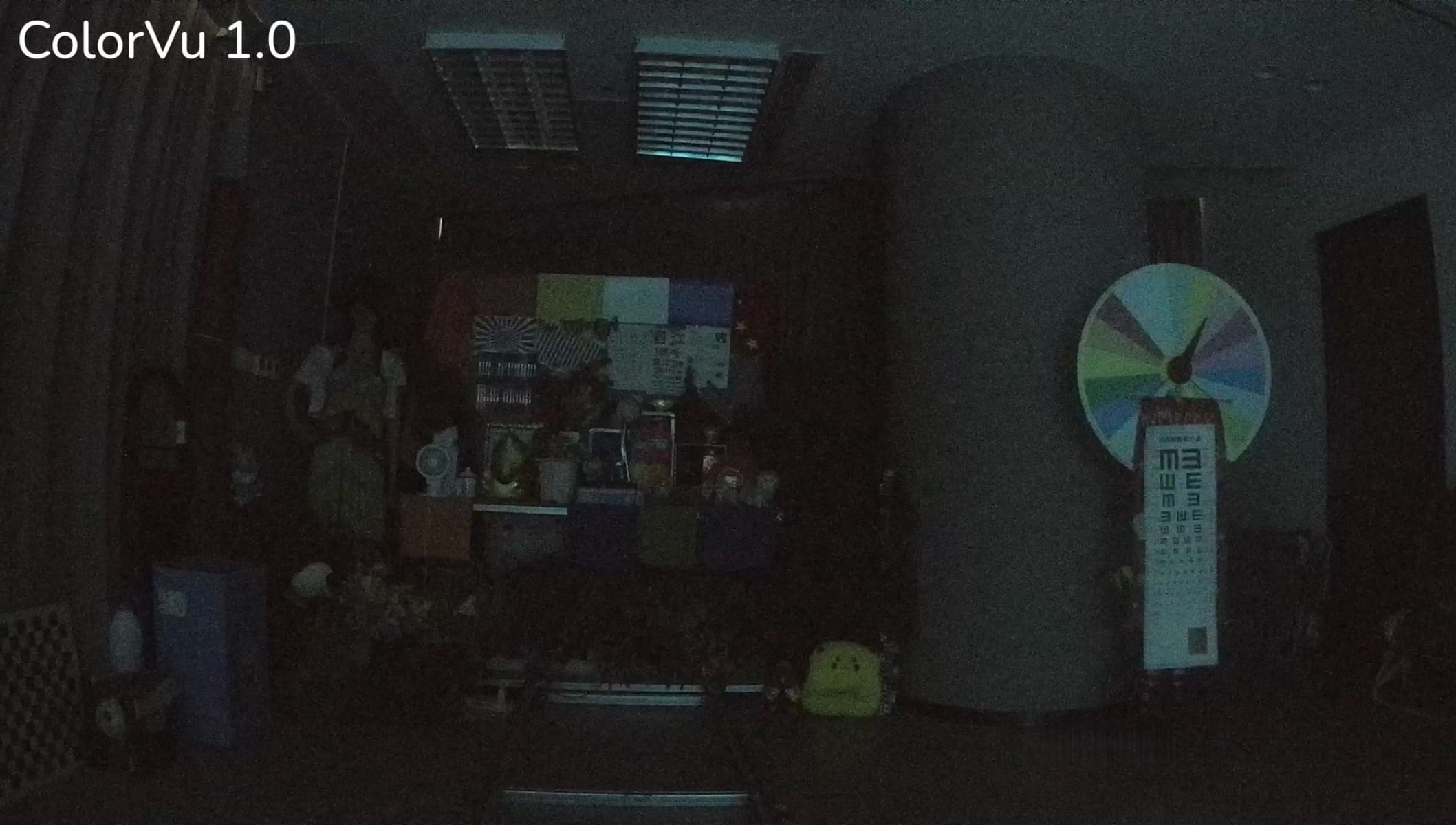

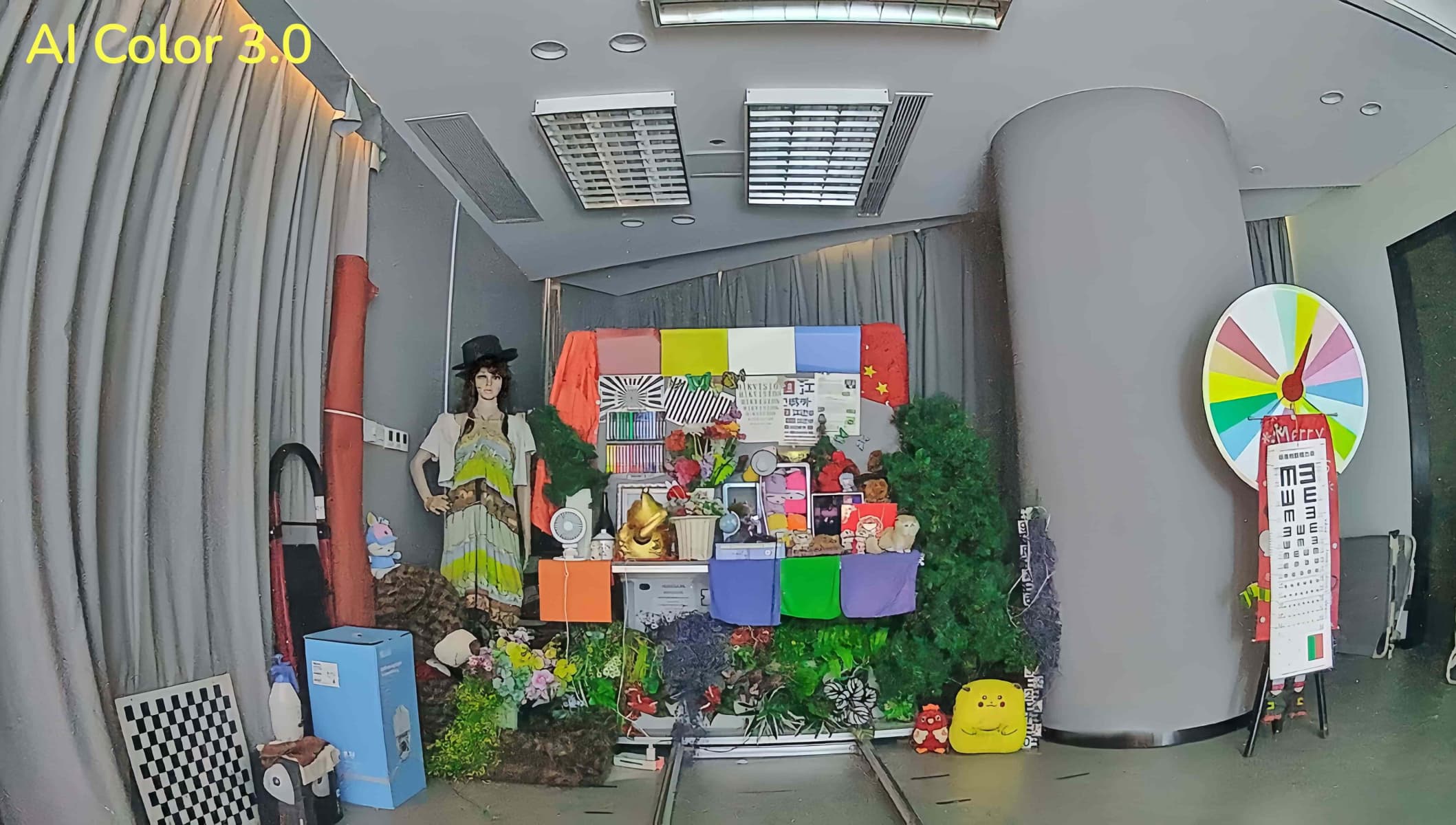

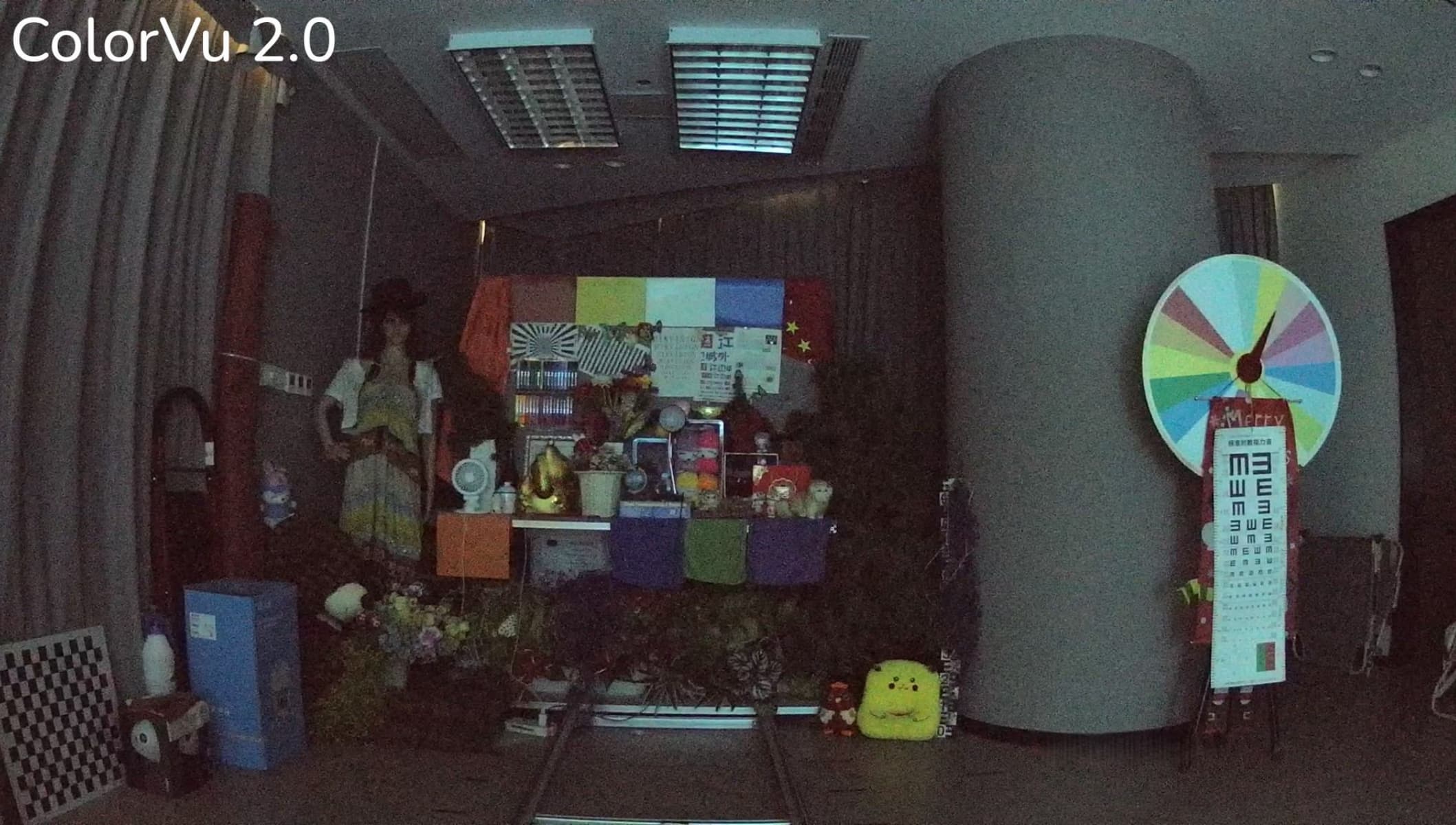

24/7 colorful imaging via ColorVu technology

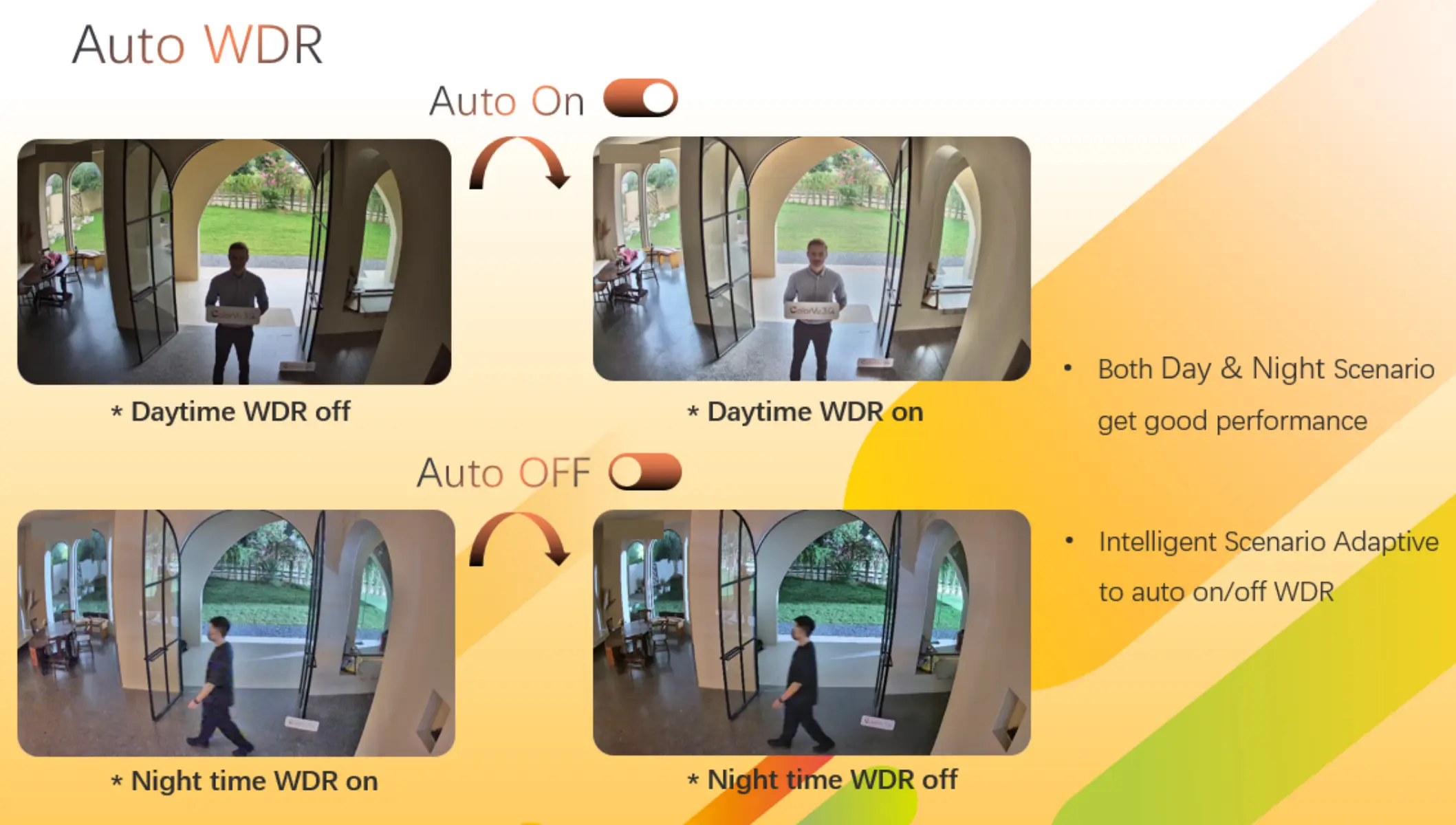

Scene-adaptive WDR
Focus on Person and Vehicle classification based on deep learning
Built-in arrayed dual-microphone for real-time high quality audio security
Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)
Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
Water and dust resistant (IP67)
Water and dust resistant (IP67)
|
Specification |
|
|
Camera |
|
|
Image Sensor |
1/1.8" Progressive Scan CMOS |
|
Max. Resolution |
2688 × 1520 |
|
Min. Illumination |
Color: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with light |
|
Shutter Time |
1 s to 1/100,000 s |
|
Day & Night |
IR cut filter |
|
Angle Adjustment |
Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
|
Lens |
|
|
Lens Type |
Fixed focal lens, 2.8 and 4 mm optional |
|
Focal Length & FOV |
2.8 mm, horizontal FOV 111.1°, vertical FOV 57.6°, diagonal FOV 138.5° |
|
Lens Mount |
M16 |
|
Iris Type |
Fixed |
|
Aperture |
F1.0 |
|
Depth of Field |
2.8 mm: 2.5 m to ∞ |
|
DORI |
|
|
DORI |
2.8 mm: D: 61 m, O: 24 m, R: 12 m, I: 6 m |
|
Illuminator |
|
|
Supplement Light Type |
White Light, IR |
|
Supplement Light Range |
Up to 30 m |
|
Smart Supplement Light |
Yes |
|
IR Wavelength |
850 nm |
|
Video |
|
|
Main Stream |
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
|
Sub-Stream |
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) |
|
Third Stream |
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
|
Video Compression |
Main stream: H.265/H.264/H.264+/H.265+, |
|
Video Bit Rate |
32 Kbps to 8 Mbps |
|
H.264 Type |
Baseline Profile, Main Profile, High Profile |
|
H.265 Type |
Main Profile |
|
Bit Rate Control |
CBR, VBR |
|
Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Audio |
|
|
Audio Type |
Mono sound |
|
Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
|
Audio Bit Rate |
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
|
Audio Sampling Rate |
8 kHz/16 kHz/32 kHz/48 kHz |
|
Environment Noise Filtering |
Yes |
|
Network |
|
|
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP |
|
Simultaneous Live View |
Up to 6 channels |
|
API |
ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
|
User/Host |
Up to 32 users |
|
Security |
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) |
|
Network Storage |
NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
|
Client |
Guarding Vision |
|
Web Browser |
Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, |
|
Image |
|
|
Image Parameters Switch |
Yes |
|
Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
|
Day/Night Switch |
Day, Night, Auto, Schedule |
|
Image Enhancement |
BLC, HLC, 3D DNR, Distortion Correction, Defog |
|
SNR |
≥ 52 dB |
|
Wide Dynamic Range (WDR) |
130 dB |
|
Image Stabilization |
EIS |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
Interface |
|
|
Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
On-Board Storage |
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
|
Audio |
Arrayed dual-microphone |
|
Reset Key |
Yes |
|
Event |
|
|
Basic Event |
Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
|
Smart Event |
Scene change detection |
|
Linkage |
Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email |
|
Deep Learning Function |
|
|
Face Capture |
Yes |
|
Perimeter Protection |
Line crossing, intrusion, region entrance, region exiting |
|
General |
|
|
Power |
12 VDC ± 25%, 0.7 A, max. 8.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, |
|
Material |
Cover: Metal, main body: Metal |
|
Dimension |
Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5") |
|
Package Dimension |
170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3") |
|
Weight |
Approx. 750 g (1.7 lb.) |
|
With Package Weight |
Approx. 1140 g (2.5 lb.) |
|
Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|
Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|
General Function |
Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding |
