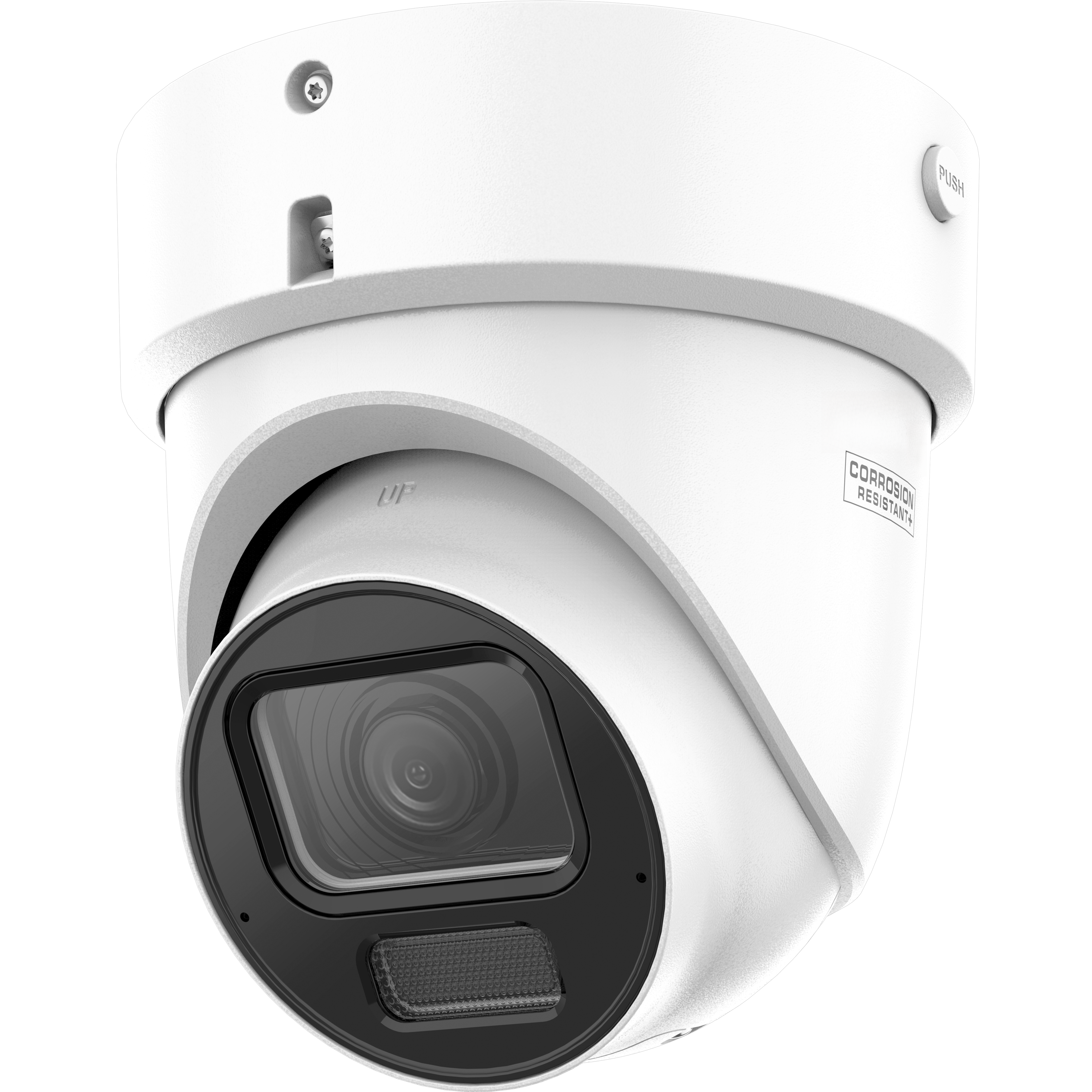

Motorized varifocal lens for easy installation and monitoring
Innovative socket design, highly waterproof and user-friendly
24/7 colorful imaging, DBAI-ISP for excellent noise reduction effect
Focus on Person and Vehicle classification based on deep learning
Smart Hybrid Light: integrates IR and White lights, 3 supplemental lighting modes
Anti-corrosion design for stable protection (NEMA 4X)

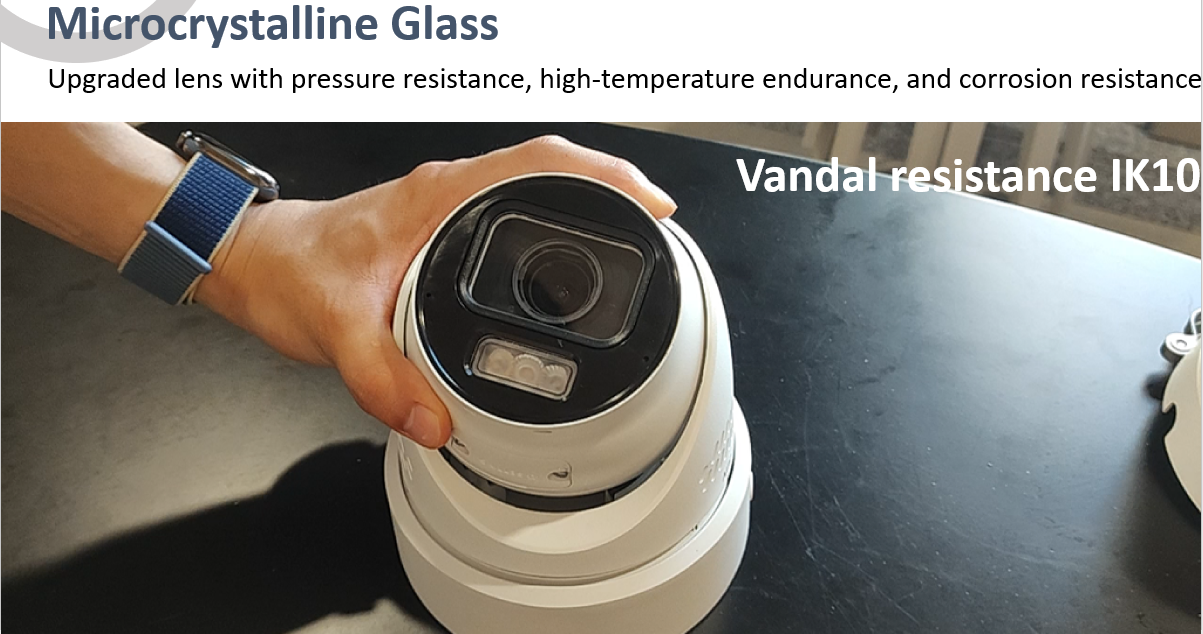

Water and dust resistant (IP67) and vandal resistant (IK10)
Clear imaging against strong back light due to 130 dB WDR technology
|
Specification |
|
|
Camera |
|
|
Image Sensor |
1/1.8" Progressive Scan CMOS |
|
Max. Resolution |
2688 × 1520 |
|
Min. Illumination |
Color: 0.0005 Lux @ (F1.2, AGC ON),0 Lux with light |
|
Shutter Time |
1 s to 1/100,000 s |
|
Day & Night |
IR cut filter |
|
Angle Adjustment |
DS-2CD2H47G3-LIZSY:Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360° |
|
Lens |
|
|
Lens Type |
Varifocal lens, motorized lens, 2.8 to 12 mm |
|
Focal Length & FOV |
2.8 to 12 mm, horizontal FOV 114.6° to 41.8°, vertical FOV 59.3° to 23.6°, diagonal FOV 141.3° to 48.1° |
|
Lens Mount |
Integrated |
|
Iris Type |
Fixed |
|
Aperture |
Max. F1.2 |
|
Depth of Field |
1 m to ∞ |
|
DORI |
|
|
DORI |
Wide: D: 61.5 m, O: 24.4 m, R: 12.3 m, I: 6.2 m |
|
Illuminator |
|
|
Supplement Light Type |
IR,White Light |
|
Supplement Light Range |
IR: up to 40 m |
|
Smart Supplement Light |
Yes |
|
IR Wavelength |
850 nm |
|
Video |
|
|
Main Stream |
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
|
Sub-Stream |
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) |
|
Third Stream |
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
|
Video Compression |
Main stream: H.265/H.264/H.264+/H.265+, |
|
Video Bit Rate |
32 Kbps to 8 Mbps |
|
H.264 Type |
Baseline Profile,Main Profile,High Profile |
|
H.265 Type |
Main Profile |
|
Bit Rate Control |
CBR,VBR |
|
Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Audio |
|
|
Audio Type |
Mono sound |
|
Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
|
Audio Bit Rate |
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
|
Audio Sampling Rate |
8 kHz/16 kHz/32 kHz/48 kHz |
|
Environment Noise Filtering |
Yes |
|
Network |
|
|
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP |
|
Simultaneous Live View |
Up to 6 channels |
|
API |
ONVIF (Profile S, Profile T, Profile G),ISAPI,SDK,ISUP |
|
User/Host |
Up to 32 users |
|
Security |
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) |
|
Network Storage |
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR) |
|
Client |
iVMS-4200,DB-Connect,DB-Central |
|
Web Browser |
Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, |
|
Image |
|
|
Image Parameters Switch |
Yes |
|
Image Settings |
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
|
Day/Night Switch |
Day,Night,Auto,Schedule |
|
Wide Dynamic Range (WDR) |
130 dB |
|
SNR |
≥ 52 dB |
|
Image Stabilization |
EIS |
|
Image Enhancement |
BLC,HLC,3D DNR,Distortion Correction,Defog |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
Interface |
|
|
Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
On-Board Storage |
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
|
Audio |
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, |
|
Alarm |
1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
|
Reset Key |
Yes |
|
Event |
|
|
Basic Event |
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm |
|
Smart Event |
Scene change detection |
|
Linkage |
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture |
|
Deep Learning Function |
|
|
Perimeter Protection |
Line crossing, intrusion, region entrance, region exiting |
|
Face Capture |
Yes |
|
General |
|
|
Power |
12 VDC ± 25%, 0.9 A, max. 10.8 W,2-core terminal block,reverse polarity protection, |
|
Material |
DS-2CD2H47G3-LIZSY:Base: Metal, cover: Metal |
|
Dimension |
Ø143.5 mm × 142.7 mm (Ø5.7" × 5.6") |
|
Package Dimension |
170 mm × 170 mm × 225 mm (6.7" × 6.7" × 8.9") |
|
Weight |
Approx. 1265 g (2.8 lb.) |
|
With Package Weight |
Approx. 1525 g (3.4 lb.) |
|
Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|
Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|
Language |
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
|
General Function |
Heartbeat,mirror,flash log,password reset via email,pixel counter |
|
Approval |
|
|
EMC |
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, |
|
Safety |
CB: IEC 62368-1: 2014+A11 |
|
Environment |
CE-RoHS: 2011/65/EU, |
|
Protection |
IP67: IEC 60529-2013,IK10: IEC 62262:2002 |
